negative numbers

A topic by JJ90848 created Apr 15, 2025 Views: 508 Replies: 11
Viewing posts 1 to 4
(1 edit) (+1)

for the 7 segment displays, will there be any way to make them negative like how you could in v1? so we could use two's complement

(+1)

you could always use a second display and just turn on the center segment...

i meant if there was going to be an update with a 7 seg display that had a negative symbol in it

If there were an update to the 7-seg display, I'd rather he added a dot, tbh, as that's pretty common IRL

thats fair

You’ll need to use a second 7-segment display for that. The solution for it that I came up with is a little convoluted but I can send you some pictures

sure thanks man

All of my circuits for the negative sign.

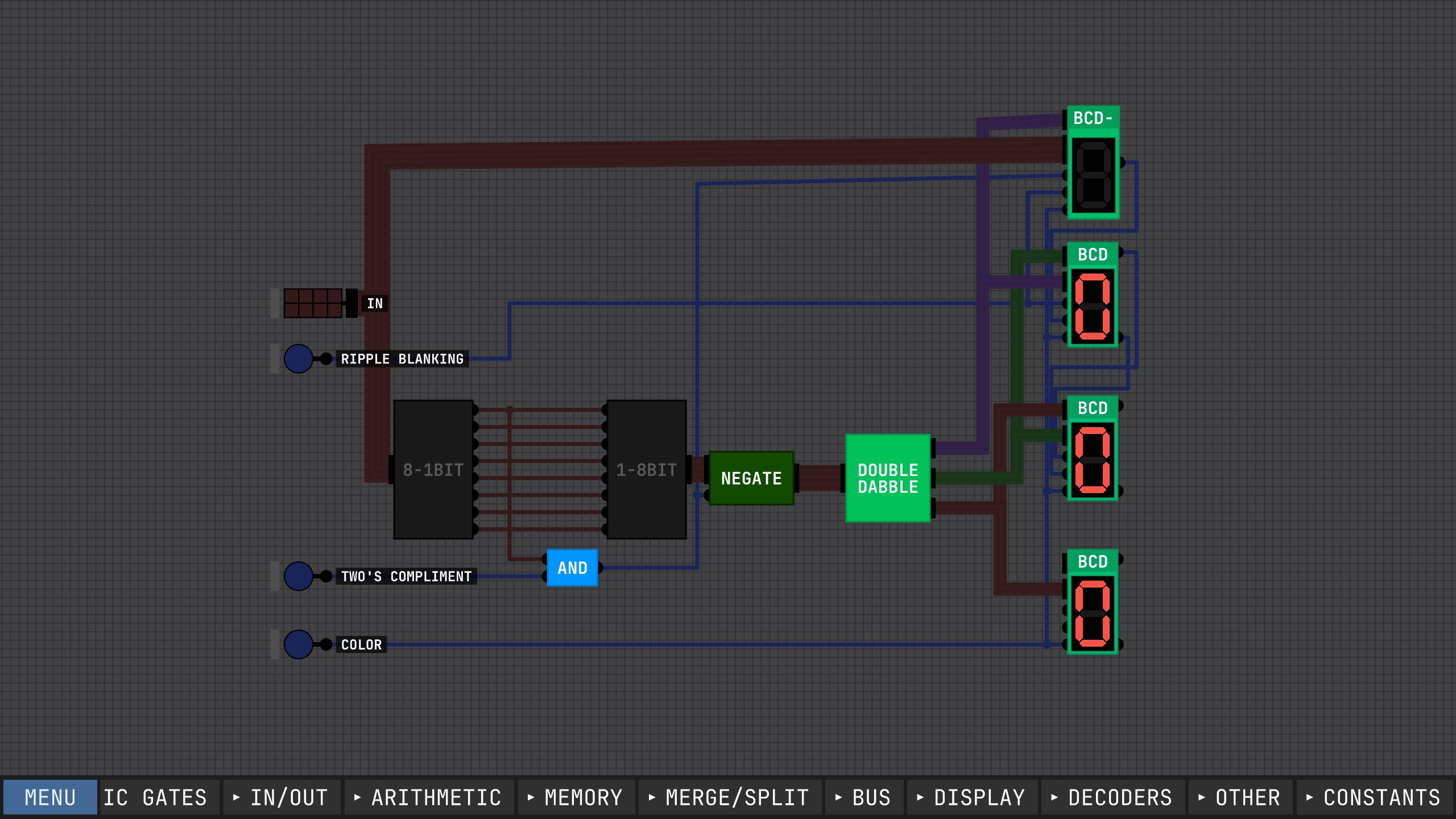

The Complete Assembly

All the individual drivers & displays wired together

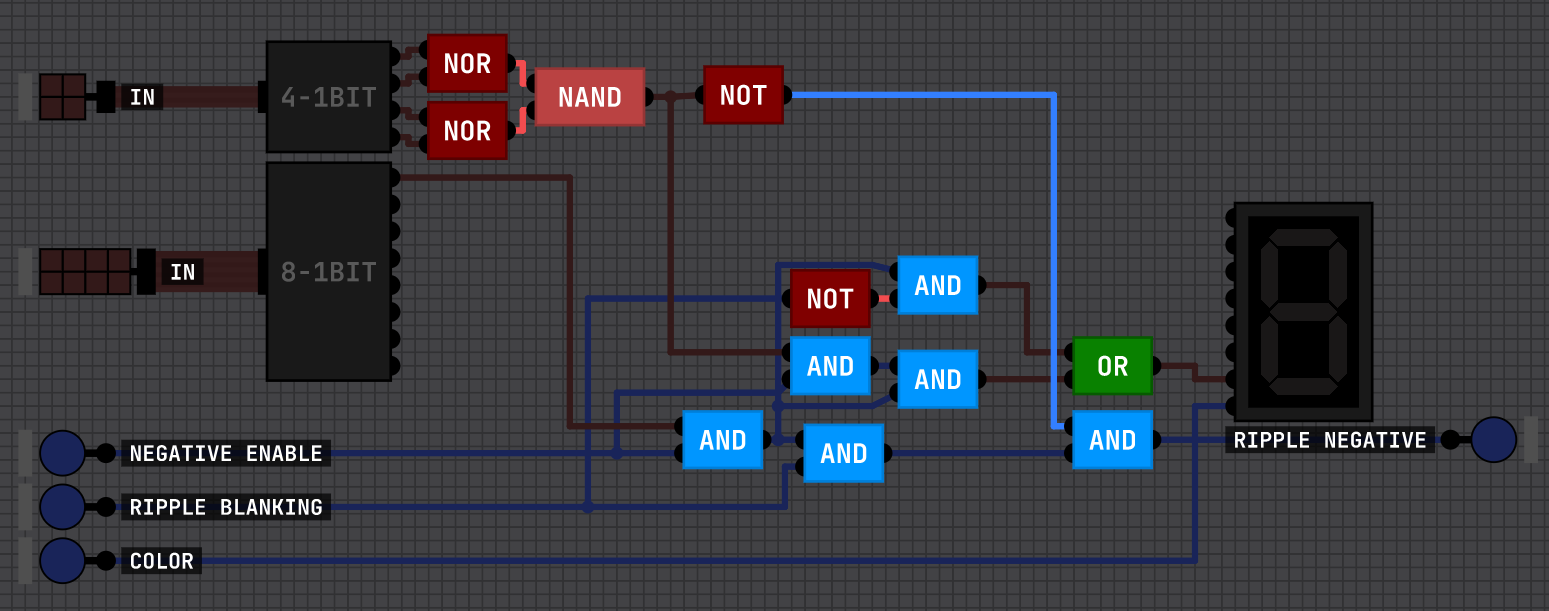

BCD-
Handles the furthest negative sign.

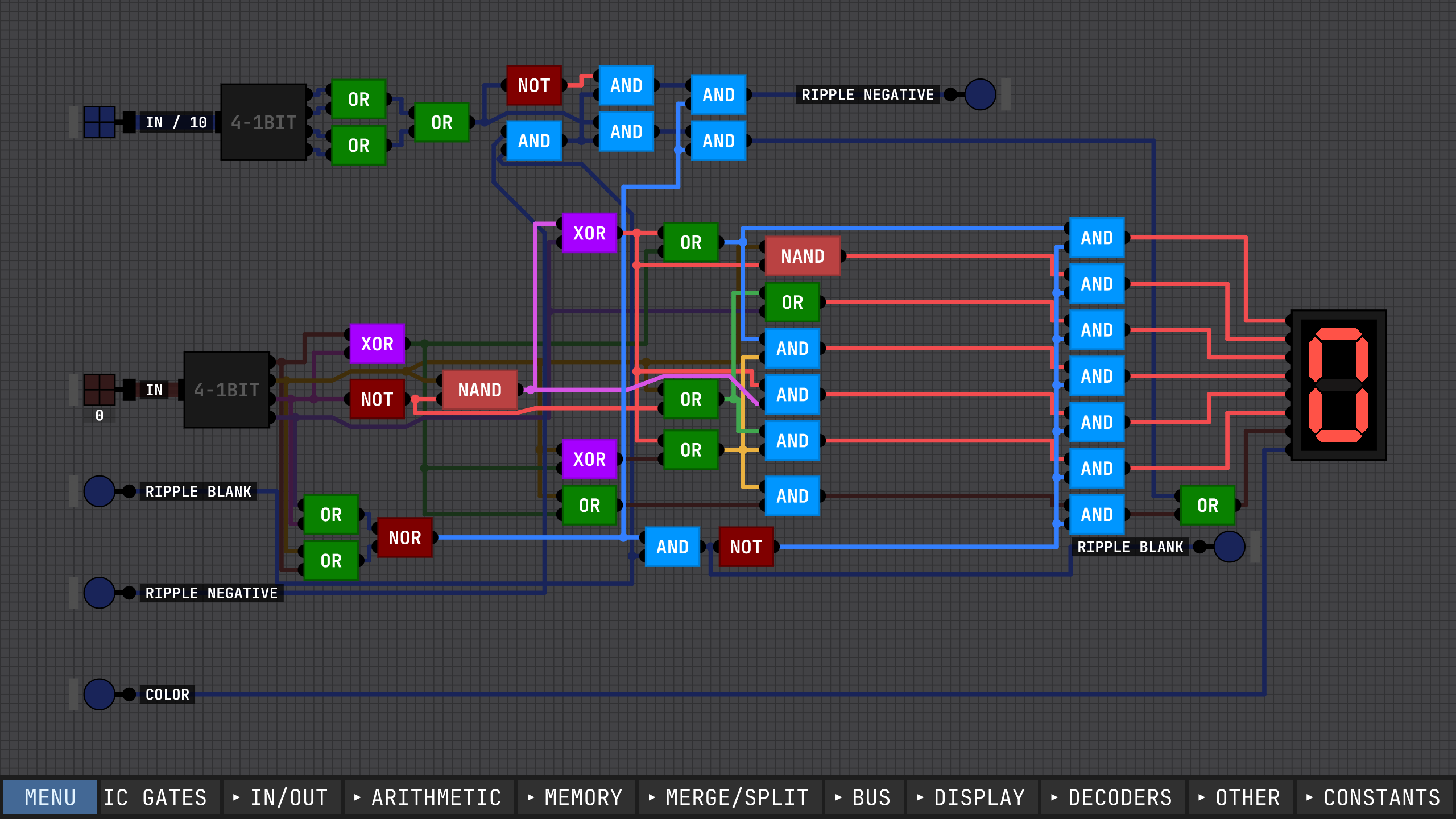

BCD
This handles numerical values, as well as the negative sign.

thanks

whats the IN/10?

please tell me how to make these; the circuits are waaaaayyy too close together for me to see anythin

Deleted 34 days ago

You can use an led to create an 8-segment
