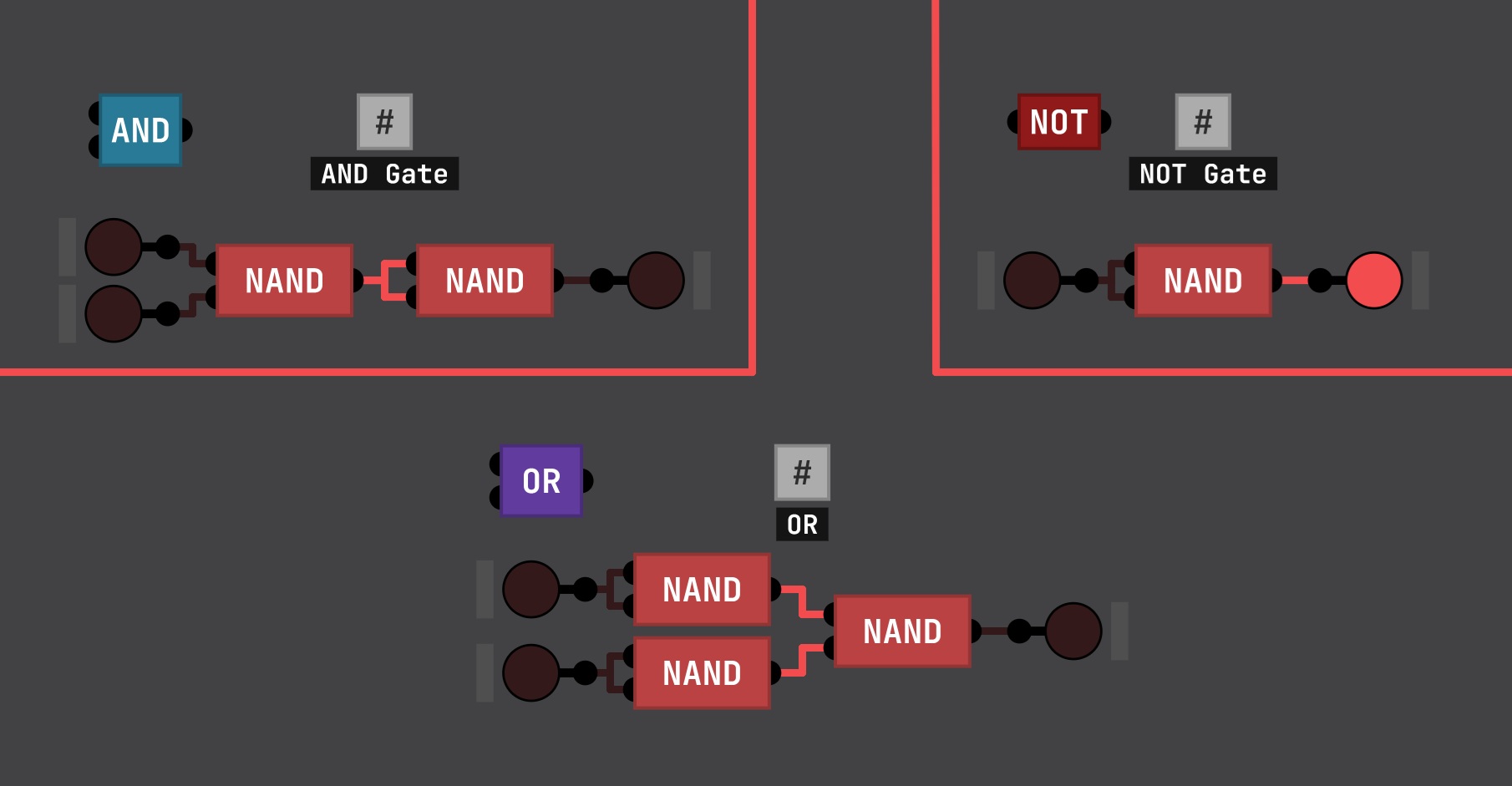

Can't find the AND, NOT and OR gates? Here is how you can get them!

A topic by HMT created Apr 13, 2025 Views: 676 Replies: 4
Viewing posts 1 to 3
(1 edit)


I also made a little wiki at https://henriheyer.de/dls/

(+1)

what is this # chip?

(+2)

It's a "Do Nothing" chip that they are using as a note or comment.

(+1)

Using 2.1.3 just cant find the "Do nothing" chip..

That is just a chip I made that doesn't have any inputs or outputs. You can create one by dragging a single NAND chip into the scene and clicking SAVE CHIP. Then, you can name the chip anything you want (for example: #) and color and resize it however you like (by then clicking CUSTOMIZE)
