COMPLETE!!!

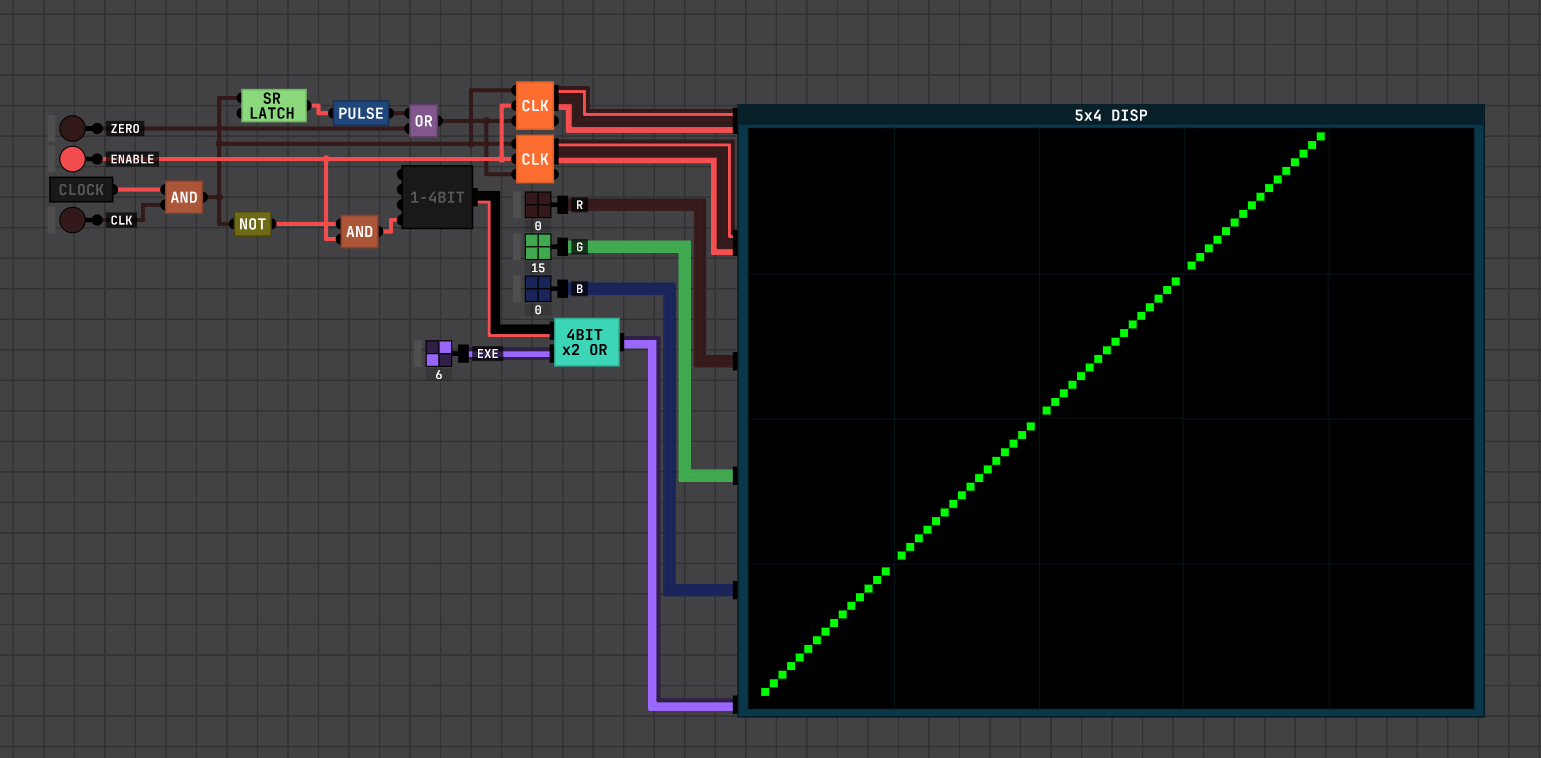

The monitor project has been a short span of time where I have seen to try and create a monitor out of the new RGB displays, and I can confirm with certainty that it is completely functional.

I am in the process of creating a driver for the address, but other than that, the monitor is complete.

Gaps in the line are not pixels being skipped over, but a trim around each RGB display. I have submitted a request for this trim to be toggleable, but as for right now it is unavoidable

Once I create the driver, I will be uploading the complete project to a github repository where it will be accessible and completely functional :)

And of course, I’m operating on the community discord! You can find me there along with many other great logical minds! https://discord.gg/WDUyhVUM

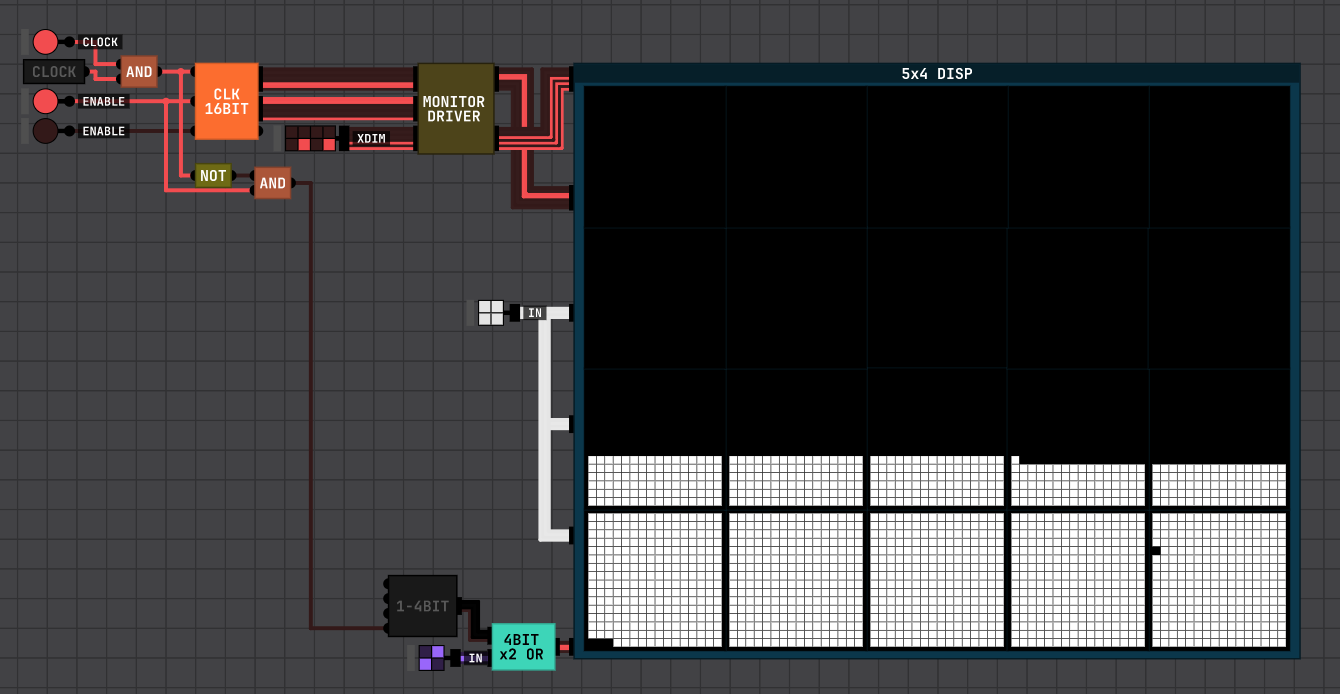

It’s complete :D

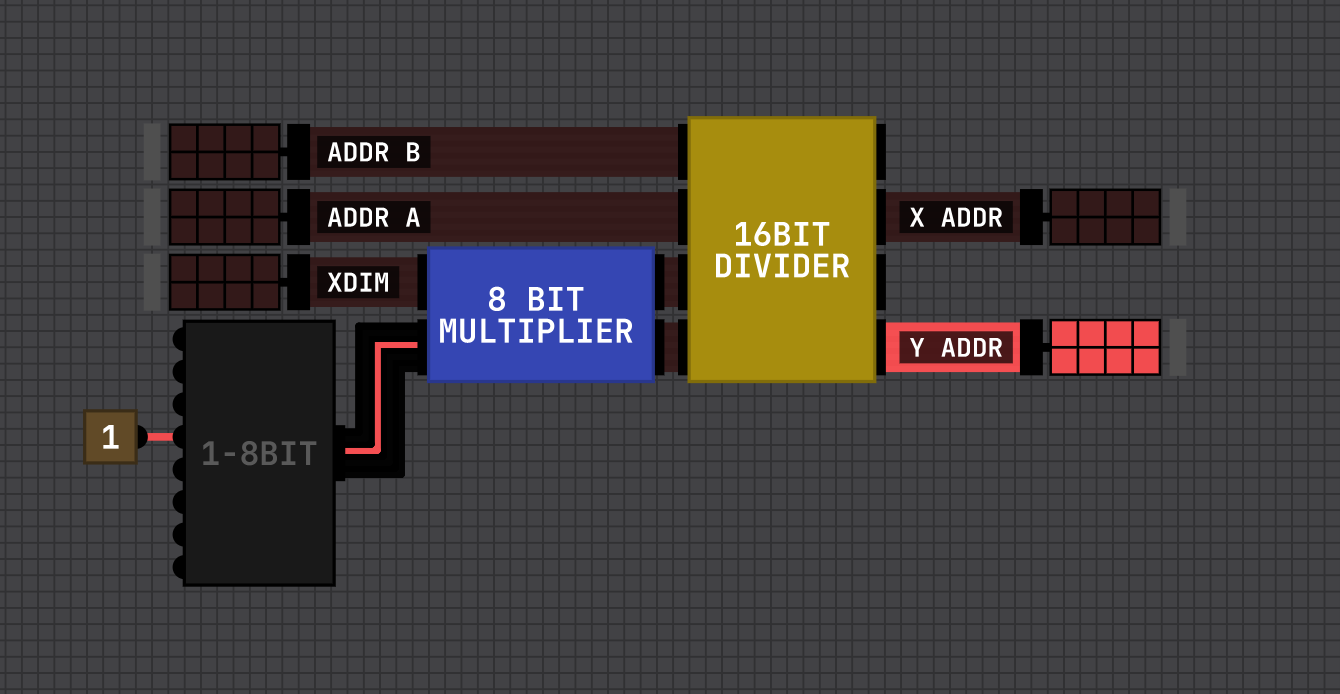

MONITOR DRIVER

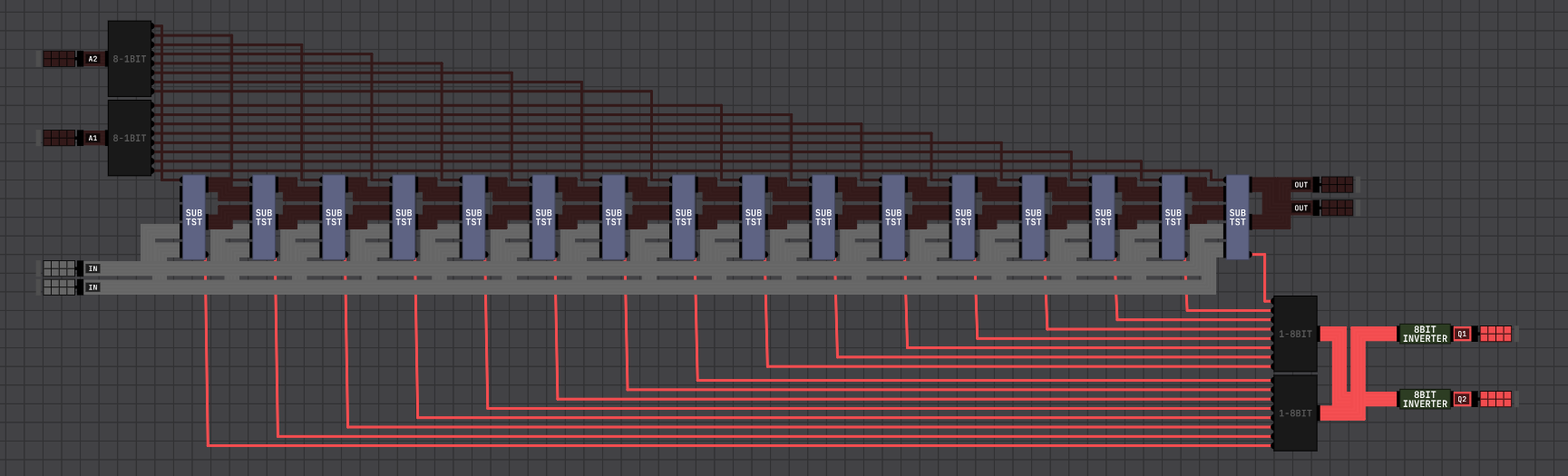

FULL DIVIDER

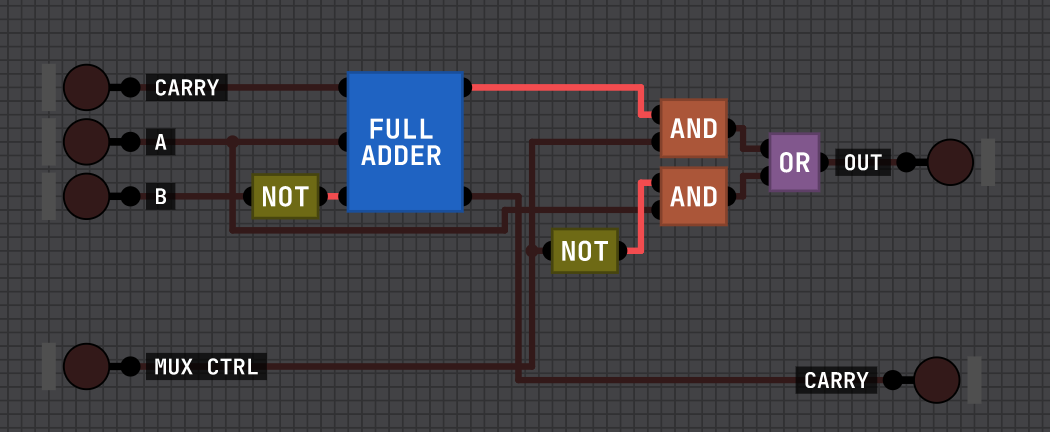

SUB TST

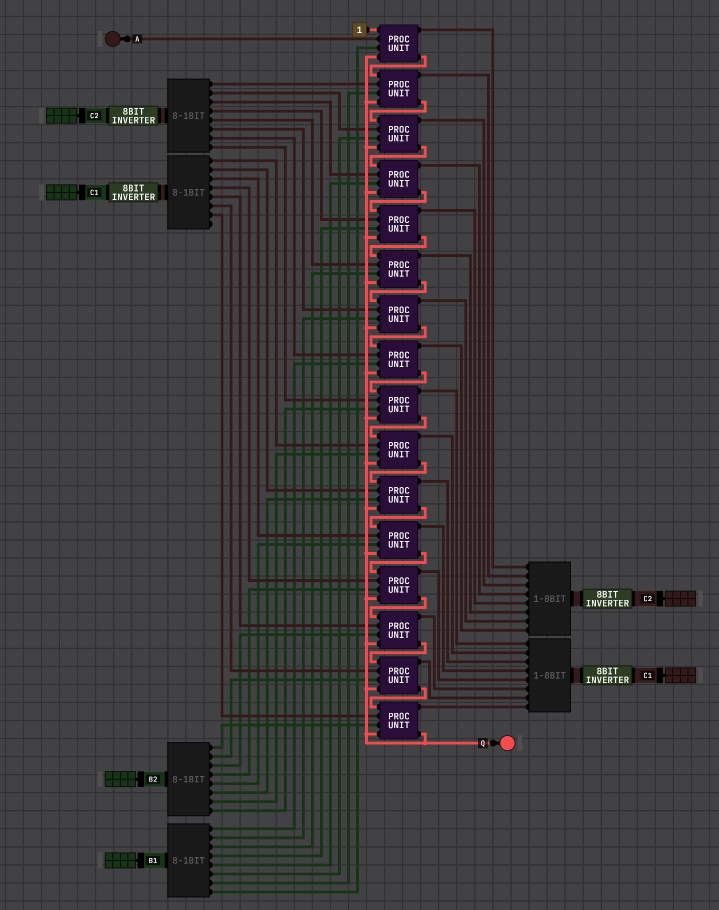

PROC TEST

I will be producing a video to submit to Sebastian Lague’s upcoming video! It will be a guide on how to operate this monitor! For now: Minimum Steps Per Clock Tick = 50

This is sick! Well done!

What do the inputs for the monitor do?
