Before starting development, my team created a shared UML diagram to plan the structure of the code. As the network programmer, I focused on designing scripts that used PlayFab and Photon for the game. The diagram shows how each script will connect and communicate with the other.
UML
Scripts

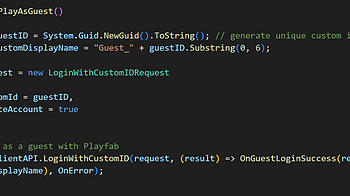

- PlayfabLogin.cs - Handles the user authentication.
- ConnectToServer.cs - Handles connecting the players to the master server.
- LobbyManager.cs - Allows players to join and create rooms.
- JoinRoomMenu.cs - Handles the UI for joining rooms.
- CreateRoomMenu.cs - Handles the UI for creating rooms.
- RoomItem.cs - Displays room information, e.g. name, no. of players
- PlayerItem.cs - Displays player information, e.g. nickname, icons
Next Steps...
After finalising the plan for my code, I can start developing the foundation of the multiplayer system, starting with features that allow players to create and join lobbies to play together.
References
[1] Miro. Available at: https://miro.com/app/dashboard/ .
[2] Miro. Connected Game UML. Available at: https://miro.com/app/board/uXjVLv3J6KE=/ .
